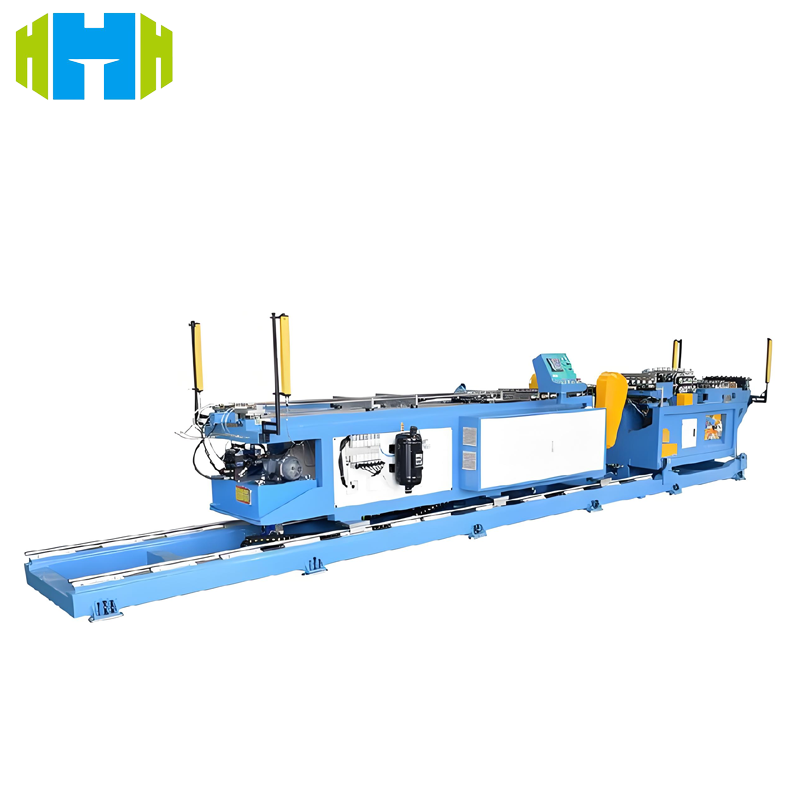

This Fully automatic intelligent hairpin bending machine is used for processing copper pipes into long U-shaped pipes. It is equipped with multiple independent feeding systems. It utilizes an AC servo system and PLC for controlling the processes of feeding, alignment, cutting, bending, and retraction. The technological procedure can be customized according to specific production requirements. The human-computer interface employs a touchscreen for operation. This equipment is capable of operating in full-automatic mode.
Item No :
HH-CU-1035/HH-CU-1037Order(MOQ) :
1Payment :
L/C, T/TProduct Origin :
ChinaColor :
NegotiableShipping Port :
NegotiableLead Time :
90 daysPrice :
NegotiableFeatures:
High efficiency: It is used with AC servo motor NC system to drive to feed .The feeding is precision . The consistency of the length is good. lt is also used with clamping hydraulic and bending The angle of bending is and the run of the equipment is stable.
Easy operation:
Used with PLC to control and also used with touch screen to set parameter automatically. Friendly operation interface. The program is very and you can only use one switch to complete the whole operation.
Dependable property: The whole machine is used with import components and the protecting function is perfect.
Good adaptability: Different bending dies can be changed to meet various requirements.
Technical parameters:
| Model |
HH-CU-1035 |
HH-CU-1037 |
|
Use copper pipe specifications |
Φ7（Wall thickness 0.25-0.5mm） |
Φ7（Wall thickness 0.25-0.5mm) |
|
Φ9.52（Wall thickness 0.25-0.5mm） |
Φ9.52（Wall thickness 0.25-0.5mm） |
|
|
Bending center distance |
Φ7(15.88-22mm) |
Φ7(15.88-22mm) |
|
Φ9.52（19.05-25.4mm） |
Φ9.52（19.05-25.4mm） |
|
|
Bending length |
300-1300mm |
300-2500mm |
|
Number of bent copper tubes |
5 roots |
7 roots |
|
U-Shaped center distance accuracy |
±0.1mm |
±0.1mm |
|
Ellipticity of bend |
<15% |
<15% |
|
Bend part thinning rate |
<35% |
<35% |
|
Long U tube length accuracy |
±0.8mm |
±0.8mm |
|
Length accuracy of both ends of U-tube |
1.0mm |
1.0mm |
|
Control method |
Manual, inching, automatic |
Manual, inching, automatic |
|
Straightness |
≤3mm |
≤3mm |
|
Cutting edge rate |
10% |
10% |
|
Working voltage |
AC380V |
AC380V |
|
Air pressure range |
0.3-0.5Mpa |
0.5-0.7Mpa |
Product details:
FAQ:
Q1: What is the bending accuracy of hairpin type pipe bender?
A: Our hairpin type pipe bender has high precision bending properties and is able to bend the pipe to very precise angles and curvatures. Generally speaking, the bending Angle error can be controlled within ±[specific Angle error value] to ensure that your high requirements for product accuracy are met.
Q2: What materials of pipes can be bent?
A: The hairpin type pipe bender is suitable for pipes of various materials, including but not limited to stainless steel, carbon steel, copper, aluminum and other common metal pipes. Different materials of the pipe in the bending process may need to adjust some parameters, but our equipment can be well adapted to the bending needs of various materials.
Q3: Is it complicated to operate a hairpin pipe bender?
A: It's not complicated. Our hairpin pipe bender is designed with a user-friendly interface that is easy to understand. Even if you do not have rich experience in equipment operation, after our professional training, you can quickly start to operate.
Q4: Is the equipment easy to maintain?
A: Hairpin pipe bender is relatively simple to maintain. We will provide you with detailed maintenance manuals, regularly clean, lubricate and check the working status of key components of the equipment, which can effectively extend the service life of the equipment. At the same time, we also provide timely after-sales service, if necessary, our technicians will respond quickly and solve the problem for you.
Q5: What does after-sales service include?
A: We provide comprehensive after-sales service, including equipment installation and commissioning, operation training, free repair and maintenance during the warranty period and long-term technical support. Outside the warranty period, we will also provide you with repair services and spare parts supply at a reasonable price to ensure that your equipment is always in good working condition.
