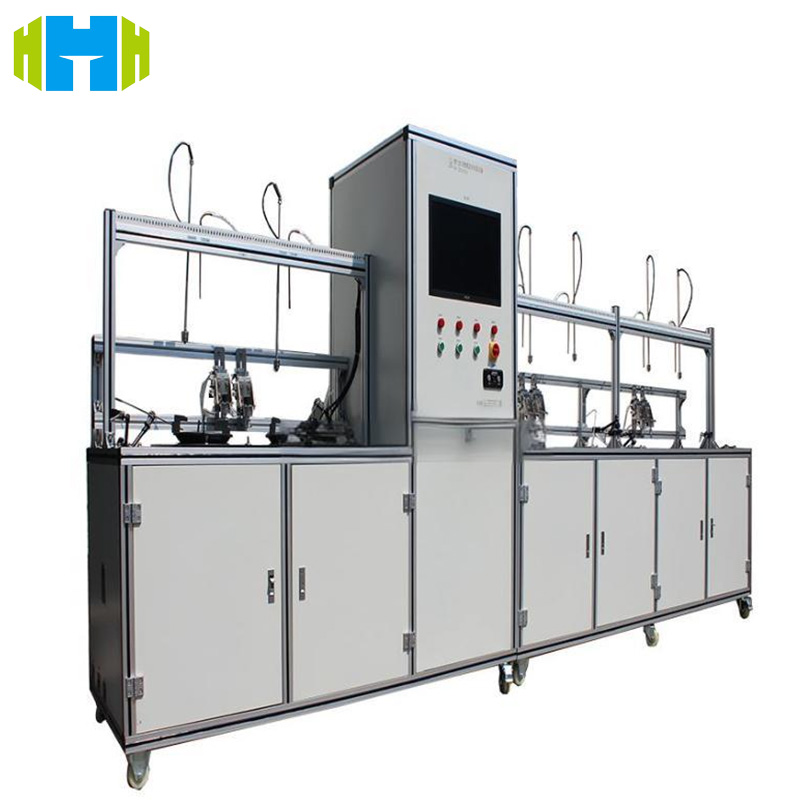

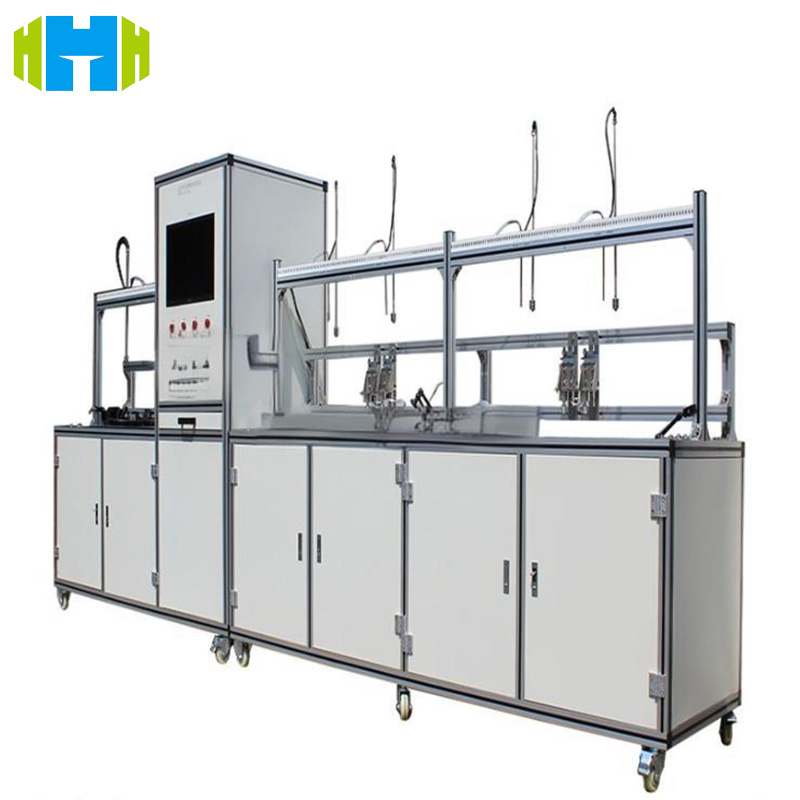

The Stove Whole Machine Aging Test Equipment with 10 sets of fixtures

The Stove Whole Machine Aging Test Equipment with 10 sets of fixtures

The Stove Whole Machine Aging Test Equipment is developed according to specified technical requirements. It is used to test the performance of valve bodies and is suitable for enterprise R&D and quality inspection departments to conduct spot checks and tests.

  • Item No :

    HH-ZJ-507L
  • Order(MOQ) :

    1 set
  • Payment :

    T/T,L/C
  • Product Origin :

    China
  • Color :

    Customizable colors
  • Shipping Port :

    Guangzhou Port
  • Lead Time :

    45 working days
  • Price :

    Negotiatable

The Stove Whole Machine Aging Test Equipment

Main Parameters

Voltage: Works at AC220V ± 10%, 50Hz.

Compressed Air: Requires a pressure of 0.2 - 0.04MPa.

Workstations: Consists of one set of testing instruments with 10 sets of fixtures (5 sets on the countertop and 5 sets in the cabinet).

Current and Resistance Tests: The thermoelectric solenoid valve closing current test range is 0 - 2000mA with an accuracy of ±0.5%. The valve body contact resistance test range is 0 - 2.000MΩ with an accuracy of ±0.5%.

Airtight Leak Detector: The test pressure ranges from 3.0 - 100.0KPa, with a differential pressure sensor of ±1000Pa and a direct pressure range of 0 - 100.0KPa. The leakage rate is 0.01 - 9.99ml/min with an accuracy of ±5% and a volume range of 10ml - 2000ml.

Torque Test: The closing torque test range is 3 - 20kgf.cm with a scale of 0.5kgf.cm.
