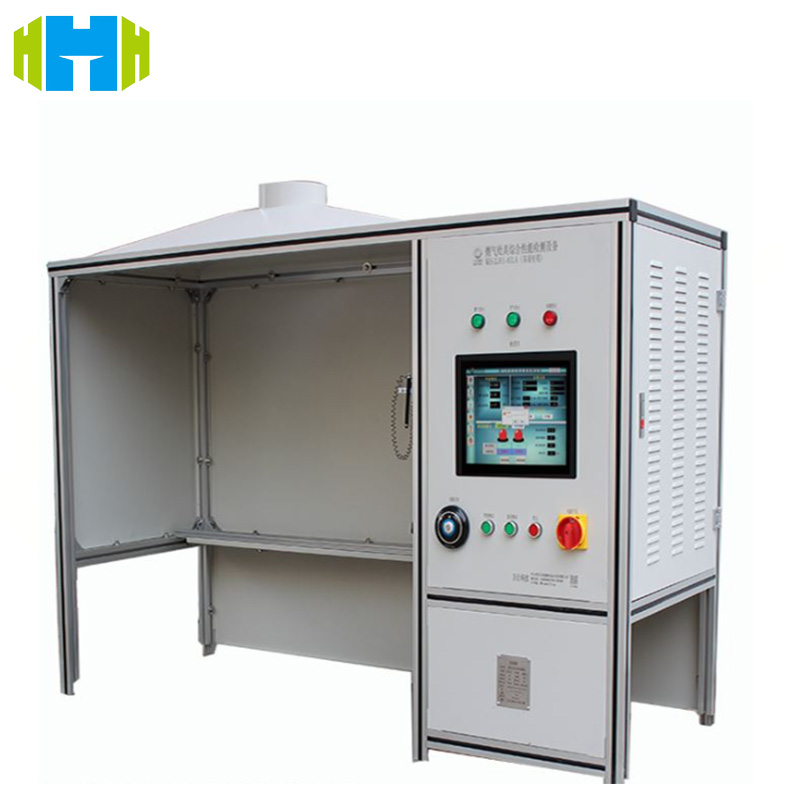

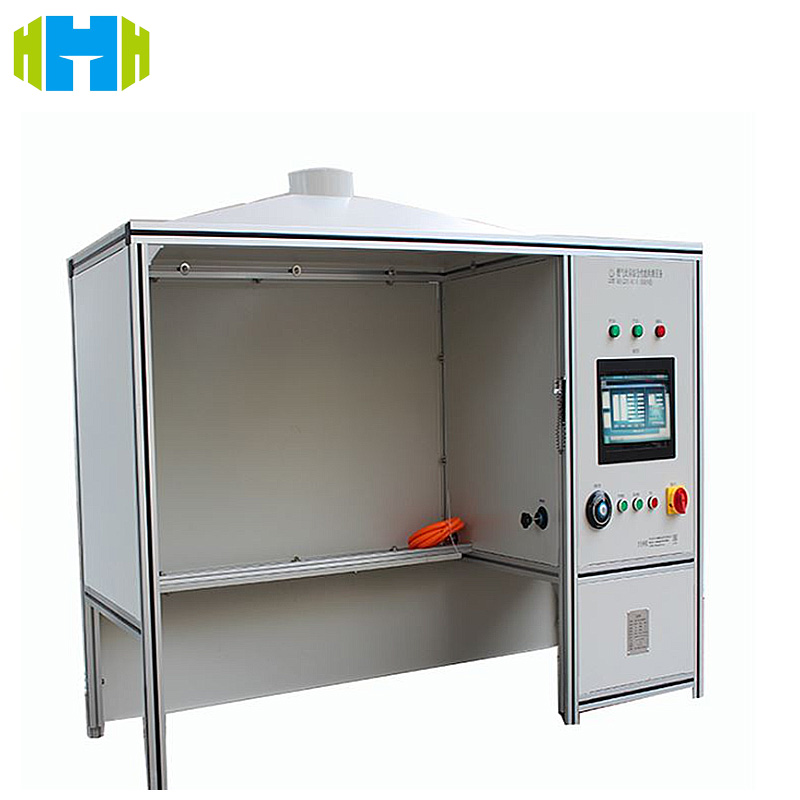

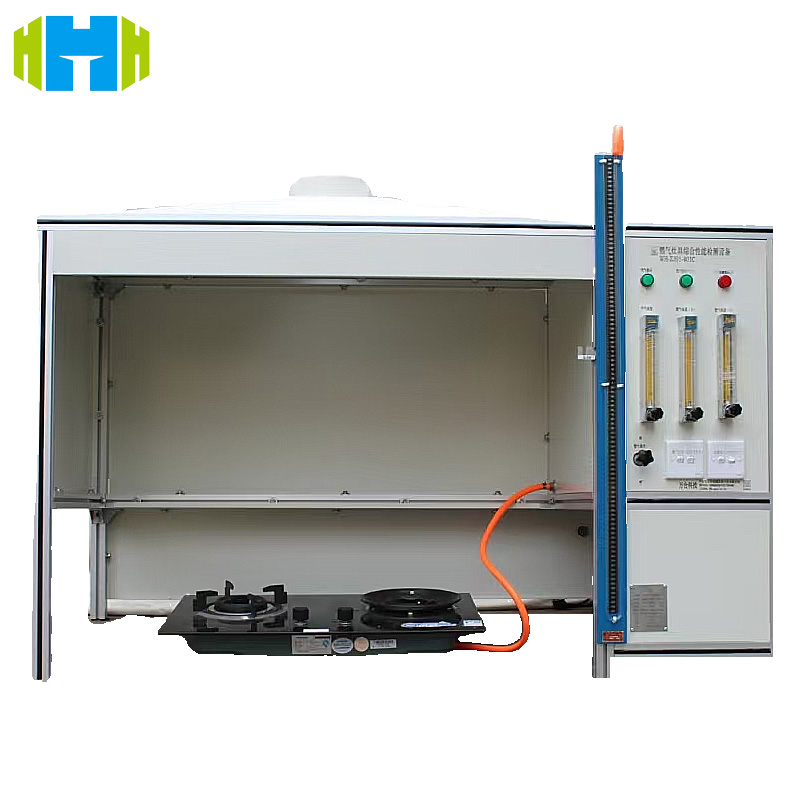

The Stove Comprehensive Performance Testing Equipment (Assembly Line Exclusive) is designed to measure the flow rate, combustion condition, and flameout protection time of gas stoves. It is suitable for the testing of the production line of gas cooker manufacturers.
Item No :
HH-ZJ-507Order(MOQ) :
1 setPayment :
T/T，L/CProduct Origin :
ChinaColor :
Customizable colorsShipping Port :
Guangzhou PortLead Time :
45 working daysPrice :
NegotiatableStove Comprehensive Performance Testing Equipment
(Assembly Line Exclusive)
Characteristics
Production Line Focus: Tailored for the production line environment, ensuring efficient and accurate testing during the manufacturing process.
Specific Testing: Focuses on key aspects relevant to gas stoves, such as flow rate, combustion, and flameout protection.
Main Parameters
Voltage: Operates at 220V/50Hz.
Compressed Air: Requires a pressure of 0.5 - 0.8MPa.
Gas Flow: Ranges from 0 - 5m³/H, with a dry-type measurement accuracy of 2.5%F.S.
Gauge Pressure and Gas Inlet Pressure: Both range from 0 - 10KPa, with an accuracy of 0.5%F.S.
Main Performance
Flow Rate Testing: Accurately measures the gas flow rate of the stove.
Combustion Condition Assessment: Evaluates the combustion condition of the stove.
Flameout Protection Testing: Determines the flameout protection time of the stove.
Leak Testing: Can perform open flame leak tests to ensure the safety of the stove.
10 Station temperature controller aging test equipment is suitable for testing the durability of the temperature controller with or without load to achieve the purpose of preventing dry burning of the water heater.
Details
The Gas Heater Comprehensive Performance Testing Equipment (Assembly Line Exclusive) is designed with precision key components and advanced control concepts. It is mainly used for testing the performance of gas heaters below 40kW.
Details
The Gas Heater Comprehensive Performance Testing Equipment (Laboratory Exclusive) is an online test system for gas heating water heaters. It meets various standards for household gas instantaneous water heaters and gas heating water heaters, as well as some thermal performance test standards. It is mainly used for online production testing of gas heating water heaters below 70kW (adjustable according to user requirements).
Details
The Gas Water Heater Performance Testing Equipment (Assembly Line Exclusive) is developed using imported and domestic advanced devices and testing technology. It is mainly used for testing the performance of gas rapid water heaters below 30kW (which can be adjusted according to user requirements).
Details
The Gas Water Heater Performance Testing Equipment (Laboratory Exclusive) is developed using imported and domestic advanced devices and testing technology. It is mainly used for testing the comprehensive performance of gas rapid water heaters below 40kW (which can be adjusted according to user requirements).
Details
The Storage Type Electric Water Heater Performance Testing Equipment (Assembly Line Exclusive) is mainly used for sampling inspection or production line testing of water heater products in the production line, and factory inspection of water heaters, mainly for those below 40KW.
Details
The Stove Comprehensive Performance Testing Equipment (Assembly Line Exclusive) is designed to measure the flow rate, combustion condition, and flameout protection time of gas stoves. It is suitable for the testing of the production line of gas cooker manufacturers.
Details
The Stove Comprehensive Performance Testing Equipment (Laboratory Exclusive) is designed to measure the heat load and energy efficiency level of gas stoves. It is suitable for research and development tests, inspection tests, etc., by gas cooker manufacturers. Quality inspection units use it for product conformity assessment.
