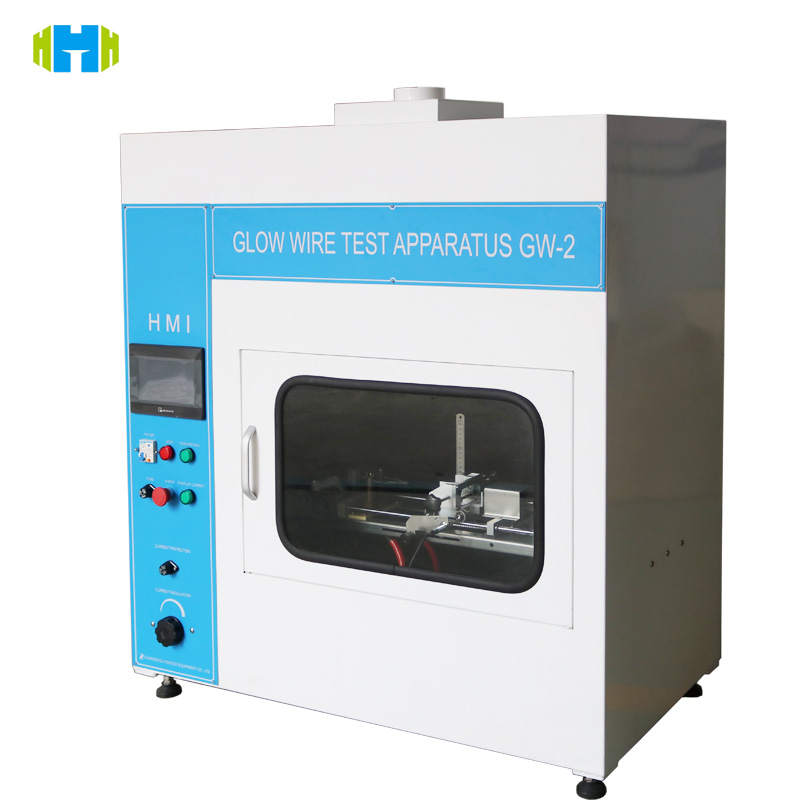

GW-2 Glow Wire Tester Precision Flame Retardant Test Equipment

GW-2 Glow Wire Tester Precision Flame Retardant Test Equipment Directly from the Source Manufacturer

Product Introduction:

As a source manufacturer, we provide efficient and reliable Flammability Testing Equipment to global customers with precise temperature control, intelligent operation experience and strict safety standards. By simulating real fire scenes, GW-2 can quickly evaluate the flame retardant grade, ignition temperature and flammability index of materials, helping companies improve product safety and compliance, so that every trust can withstand the test of "fire".

Product Features:

Humanized intelligent design:

Equipped with a 7-inch color touch screen, one-button operation process, supports automatic data saving and historical query, without complex switching, Xiaobai can easily get started.

High-precision temperature control:

Adopting imported K-type thermocouple and thyristor temperature control system, the temperature range is 500~1050℃±2℃, and the error is as low as ±5℃ (500~750℃), ensuring accurate and reliable test results.

All-round safety guarantee:

Built-in over-temperature protection, fully enclosed sample trolley and independent exhaust system, automatic smoke exhaust during the test to avoid residual exhaust gas and ensure the health of operators.

Flexible adaptation to a variety of samples:

X/Z axis free movement fixture, support positioning of irregular shaped samples, hot insertion depth of 7mm±0.5mm, pressure 0.95~1.2N adjustable, to meet diverse testing needs.

Durable:

The box can be made of stainless steel, equipped with imported nickel-chromium glow wire (Φ4mm), high temperature and anti-aging, and the service life is extended by 30%.

International reference standards:

IEC 60695-2-10~13: Fire hazard test specifications for electrical and electronic products.

GB/T 5169.10-2017: Basic test methods and device requirements for glow wire.

UL 746A: Standard for flammability evaluation of plastic materials.

DIN 695/VDE 0471: German fire test standard for electrical equipment.

Technical parameters:

Test objects and test items:

Applicable materials:

Plastics, rubber, insulating materials, engineering plastics, textiles.

Electronic components (such as connectors, PCB boards), home appliance housings, and automotive interiors.

Test items:

Glow temperature (GWIT) and flammability index (GWFI).

Flame spread rate and ignition risk of dripping.

Material continuous burning time and self-extinguishing performance.

Product details:

After-sales service:

Quick response: Professional engineer team provides remote diagnosis and on-site support, and faults are resolved within 48 hours.

Lifetime maintenance: Core components (such as glow wire, thermocouple) enjoy 1 year warranty, regular free calibration service.

Customized training: Free operation video and offline training are provided to ensure efficient operation of the equipment.
